Digital Fabrication-Exhibition Stand of Shenzhen-Hong Kong Biennale 2009数字建造系列-2009 深圳香港双年展夏昌世回顾展展台
       
     
       
     
 CONCEPT MODEL
       
     
       
     
       
     
       
     
       
     
       
     
       
     
Digital Fabrication-Exhibition Stand of Shenzhen-Hong Kong Biennale 2009数字建造系列-2009 深圳香港双年展夏昌世回顾展展台
       
     
Digital Fabrication-Exhibition Stand of Shenzhen-Hong Kong Biennale 2009数字建造系列-2009 深圳香港双年展夏昌世回顾展展台

项目状态:建成
Status: Completed
项目面积:展台平面投影面积150平米
Area: 150sqm
项目周期:2009年10月-2009年12月
Period: October 2009-December 2009

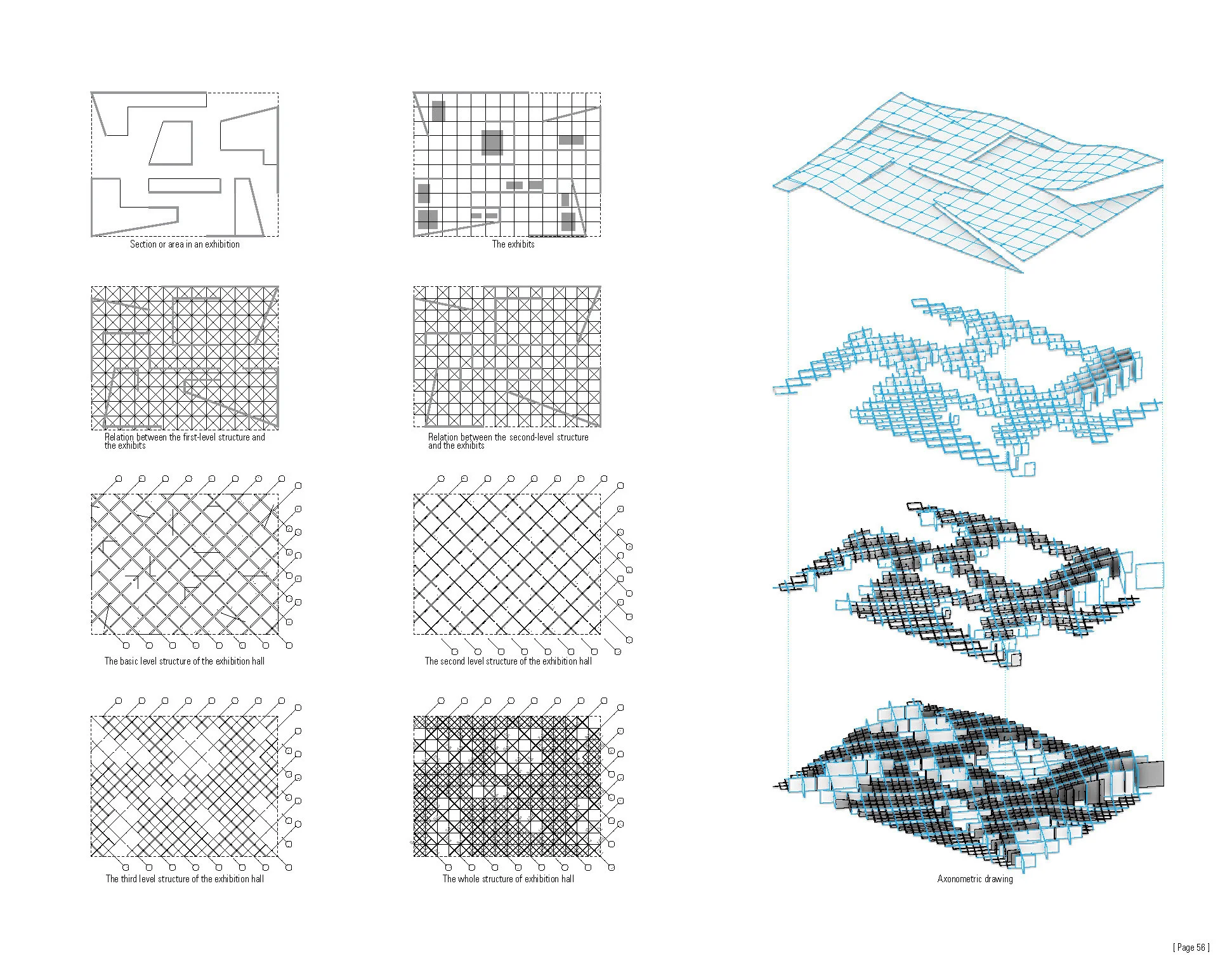

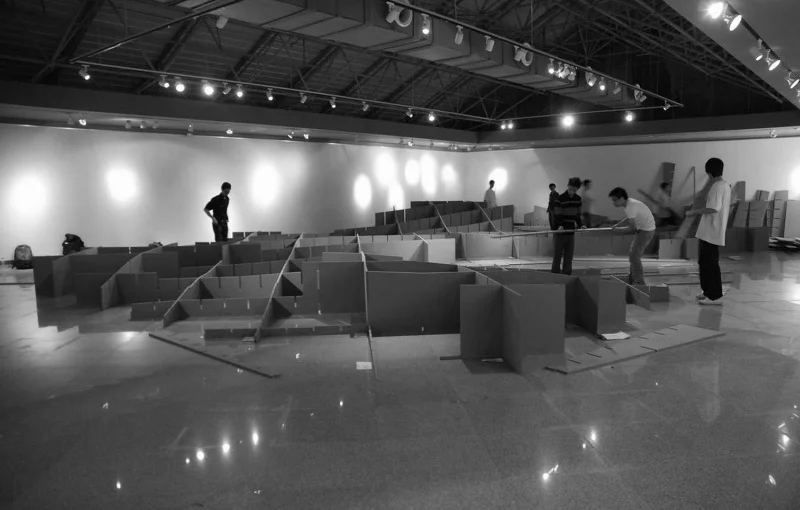

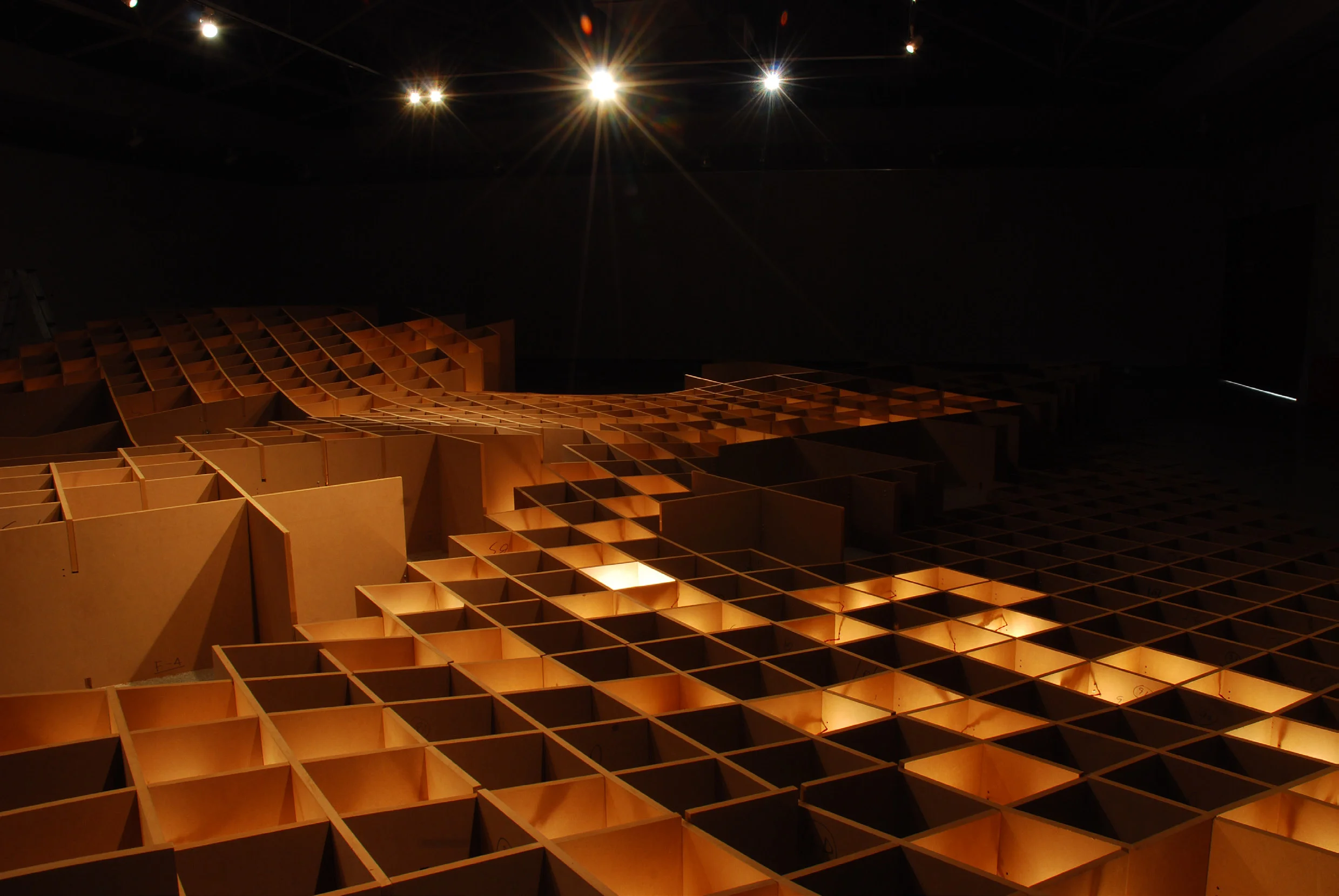

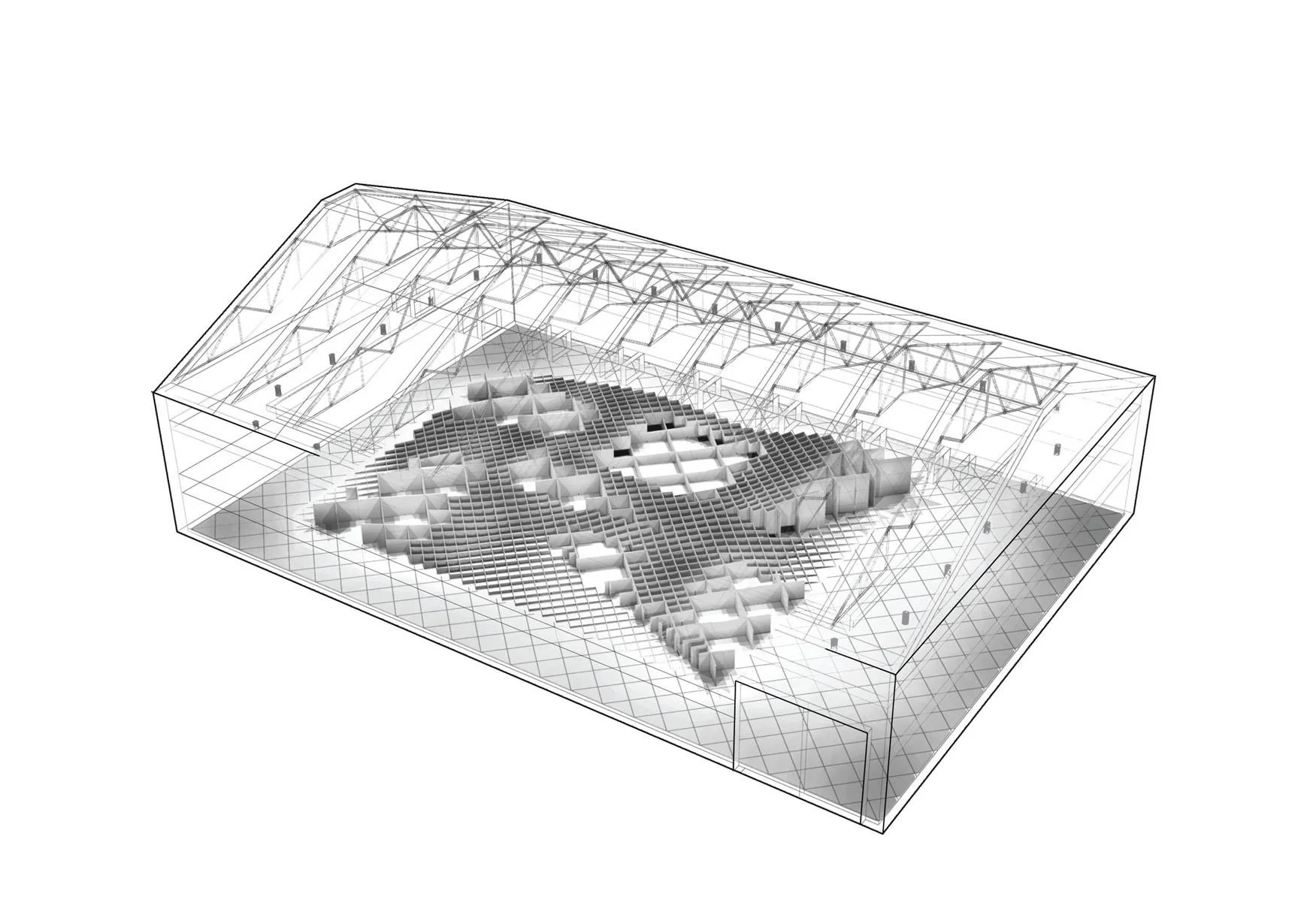

This exhibition stand is designed for Hsia Changshi, a great Lingnan Style architect. The final solution is based on digital processing. All of the hundreds of MDF boards are cut and processed with digital controlled machines. The materialized models by computers can work well with the digital process, which makes perfect procedure. The summary of the actual procedure: 1. Research on abstract geometry forms. 2. Research on the formal organization logics based on the basic shapes. 3. Recreate the abstract geometry forms with new organizational logics. 4. Research on the materials for the abstract geometry forms. 5. Deep explorations into the construction dimension of the materialized geometry forms. 6. Data based on the informational models. 7. Digital processing. 8. Construction at the site.

       这个展台是为岭南派老先生夏昌世设计的,最终建造是以一种数字加工的方式完成的。所有拼接的几百块密度板板材都通过数控机床进行切割和加工,由计算机模拟“物化”的模型能够很好的与数控加工的过程结合,使整个流程无缝对接。操作具体流程的总结:1.抽象几何形式的研究;2.在基本形的基础上研究形式组织逻辑;3.通过新的组织逻辑重新生成抽象几何形式;4.对抽象几何形式进行材料的研究;5.对获得“物化”的几何形式进行建造方面的深入;6 .基于信息化模型的“出图”;7.数字化加工;8.现场拼装。

       
     
 CONCEPT MODEL
       
     

CONCEPT MODEL

       
     
       
     
       
     
       
     
       
     
