项目状态:建成
Status: Completed
项目面积:5米长,2.5米高
Area: length 5m, height 2.5m
项目周期:2009年12月-2010年2月
Period: December 2009-February 2010

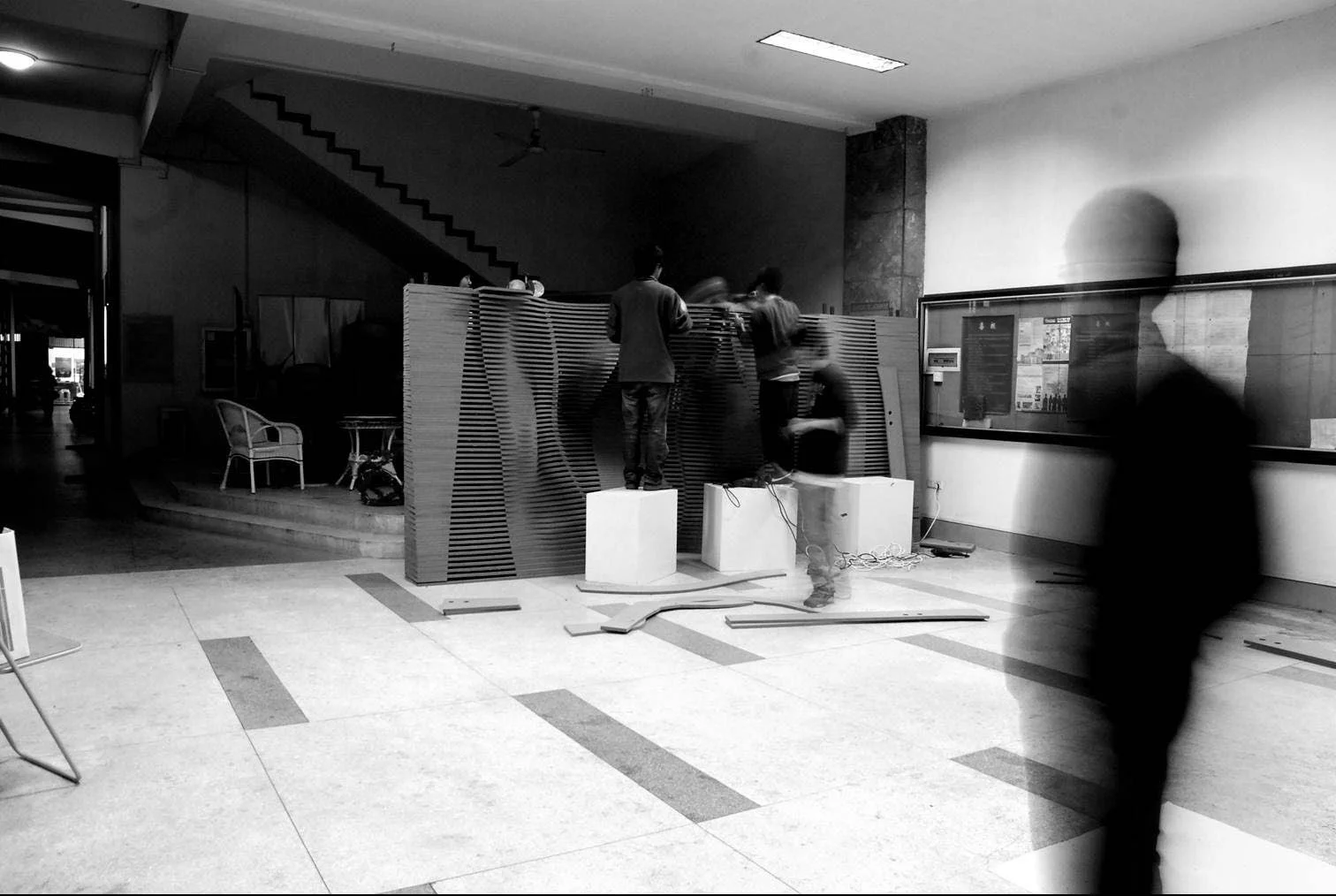

This execution solution starts from the Curved Wall generated in Van Eyck’s sculpture museum. This works is located in the entrance hall of the Architecture Department in South China University of Technology, with an attempt to employ the digital controlled machine, a significant tool under the digital situations, to materialize the workshop for the digital form. There exists a crucial design conversion between this generated form and the construction. First of all, smooth curved walls are turned into contour line walls. Then, within the maximum size of the selected mid-density boards, the curved walls are divided into sections and therefore transparent and continuous textures are formed. After this, based on the principle that two points can be located for every two boards, steels are located in the preset positions vertically between the conjoint of two boards. This makes the steels reveal their usages of both
stabilization and positioning. However as the curved walls are showing changing faces at the cut level, the steels in the middle are placed bit by bit.

       通过分析凡•艾克雕塑馆生成的"曲墙"作为建造的实施方案,并放置在华南理工大学建筑系楼入口门厅,希望使用数字条件下的重要工具--数控机床,去"物化"得到的数字形式。生成的形式到建造之间有一个重要的设计转换。首先,把光滑曲墙变成"等高线墙"的方式;其次,在选定的中密度板的最大尺寸之内,把曲墙分段,并形成通透的连续肌理;再次,根据每两块板可以两个点进行定位的原则,在两块板交接的地方预先设定竖向钢筋的位置,那么钢筋既起了稳定作用,又起了定位的作用,但由于曲墙在剖面上呈现变截面状态,中部钢筋就分一小截一小截地安放。

       
     
       
     
       
     
