项目状态 | Status
建成（2013）| Completed (2013)
项目位置 | Location
广东佛山市 | Foshan City,Guangdong Province
业主 | Proprietor
新城投资公司 | Foshan New Town Investment Company
项目规模 | Scale
建筑 3500㎡，景观 22000㎡ | Architecture 3500㎡,Landscape 22000㎡
项目年份 | Year
2011 - 2012 | 2011 – 2012

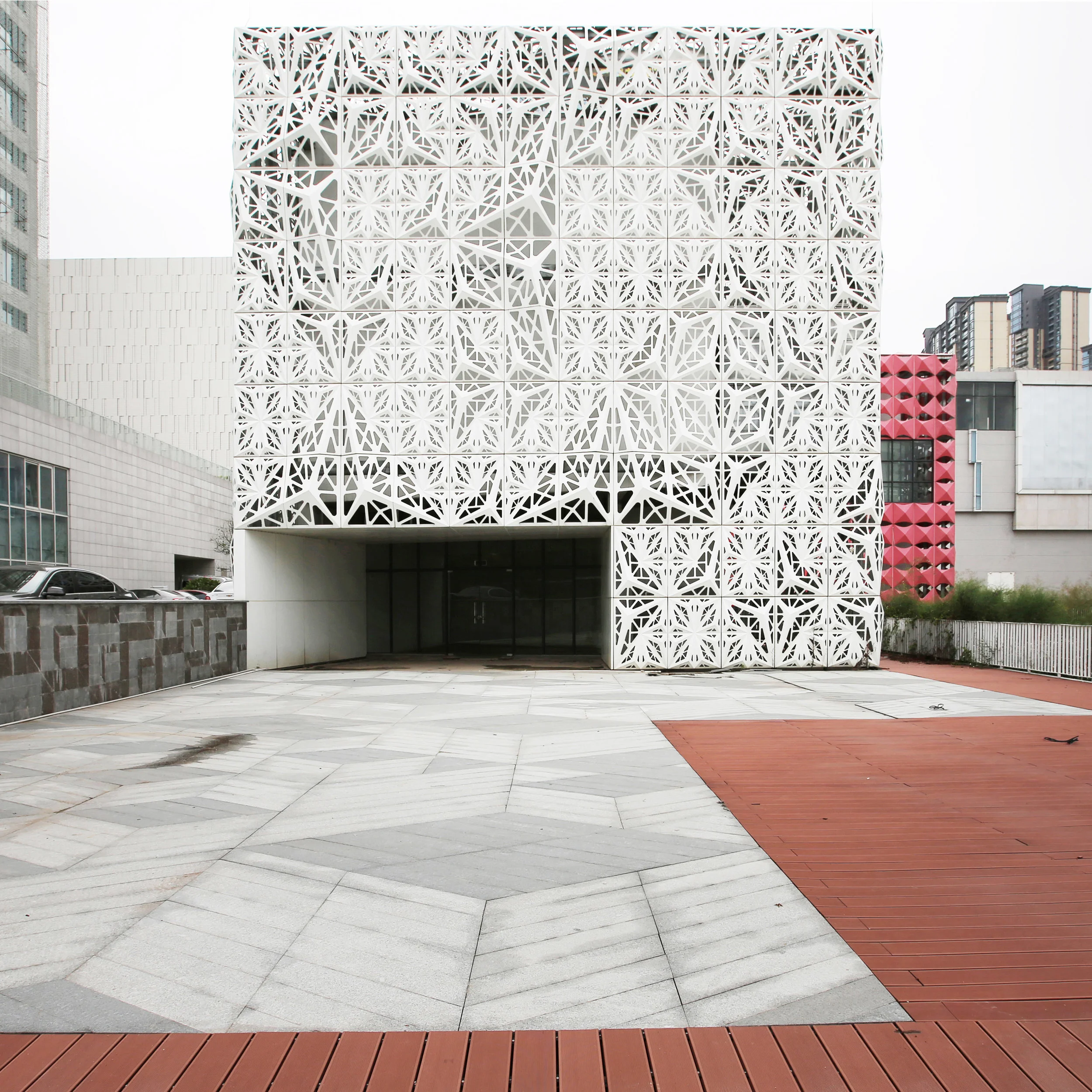

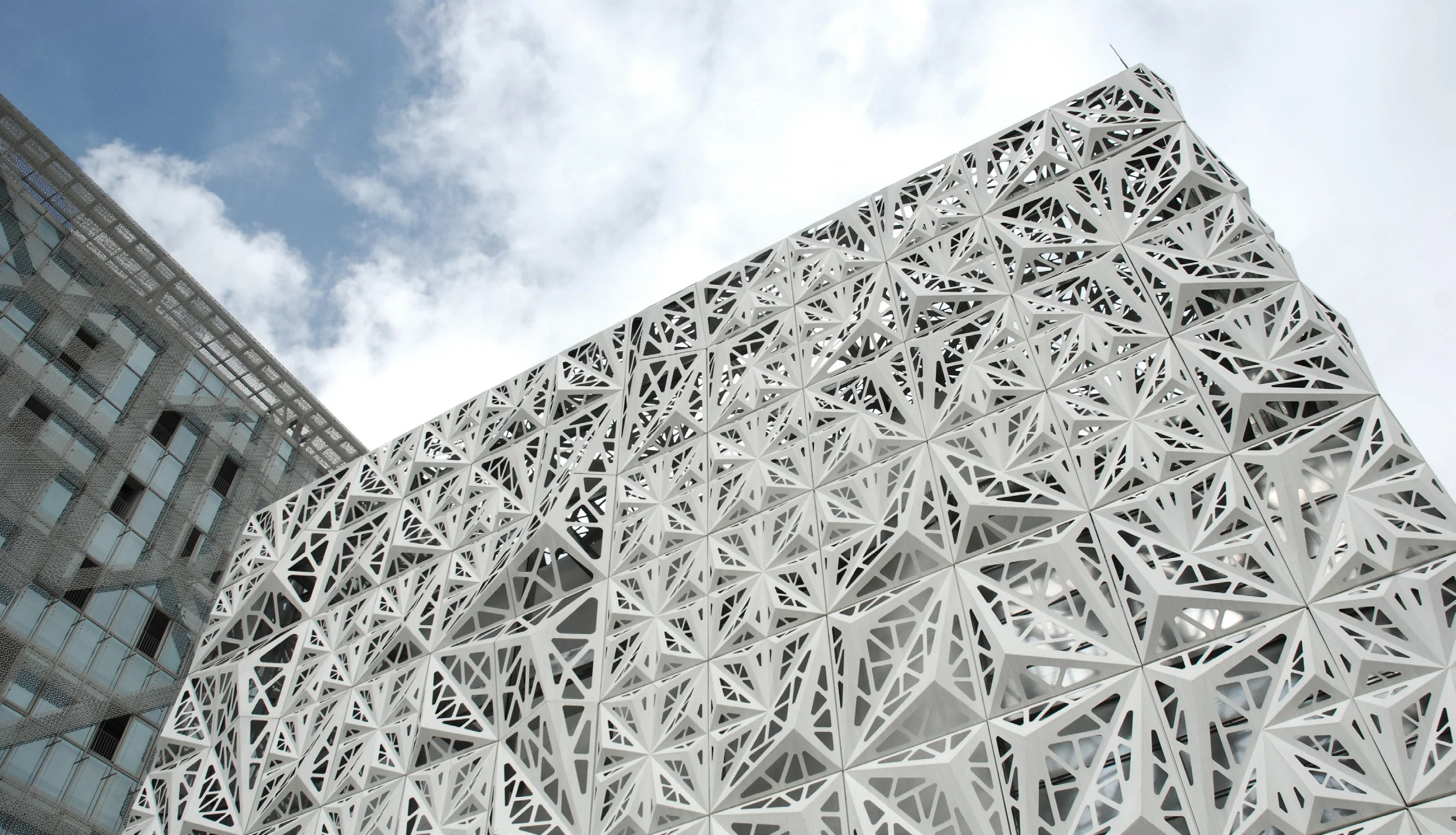

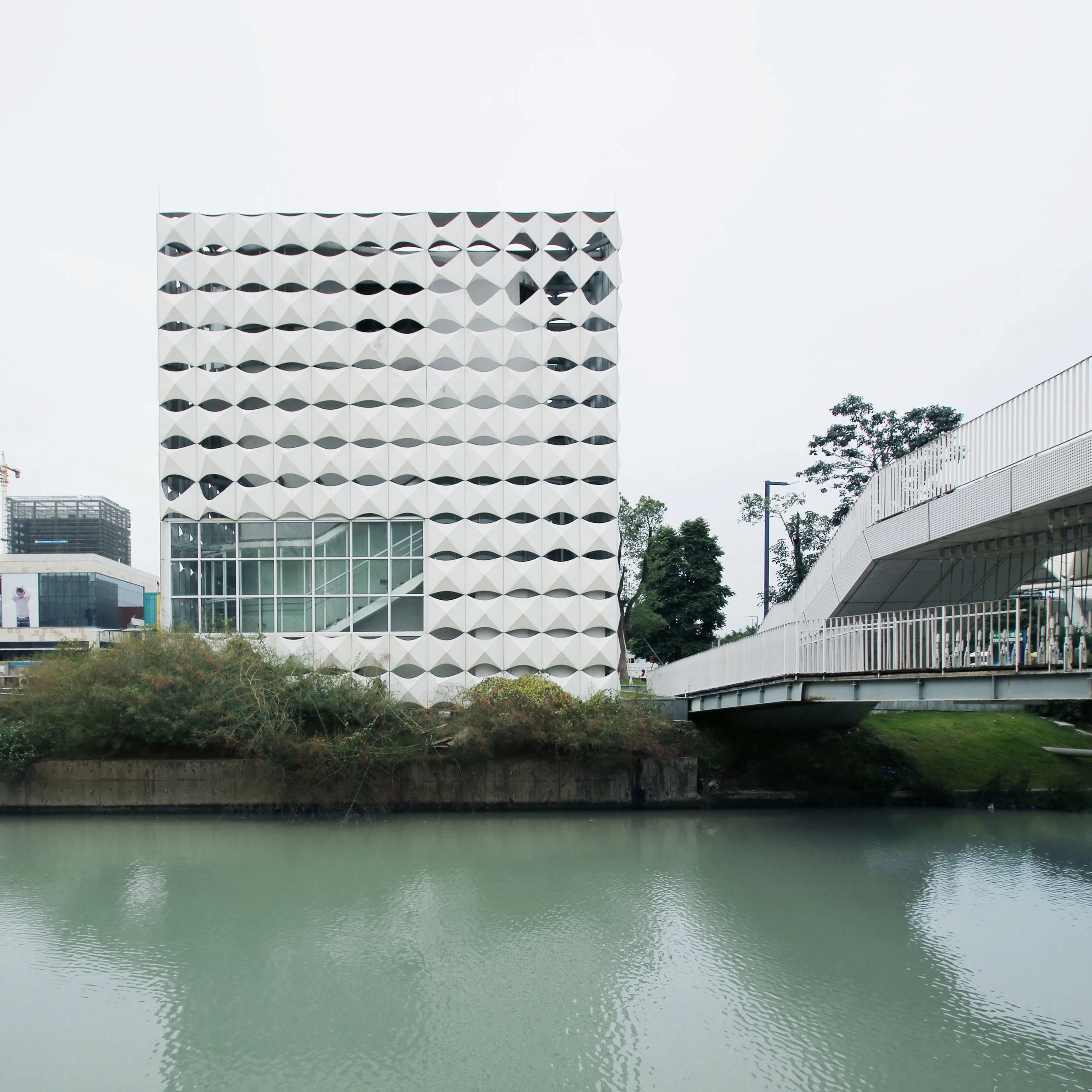

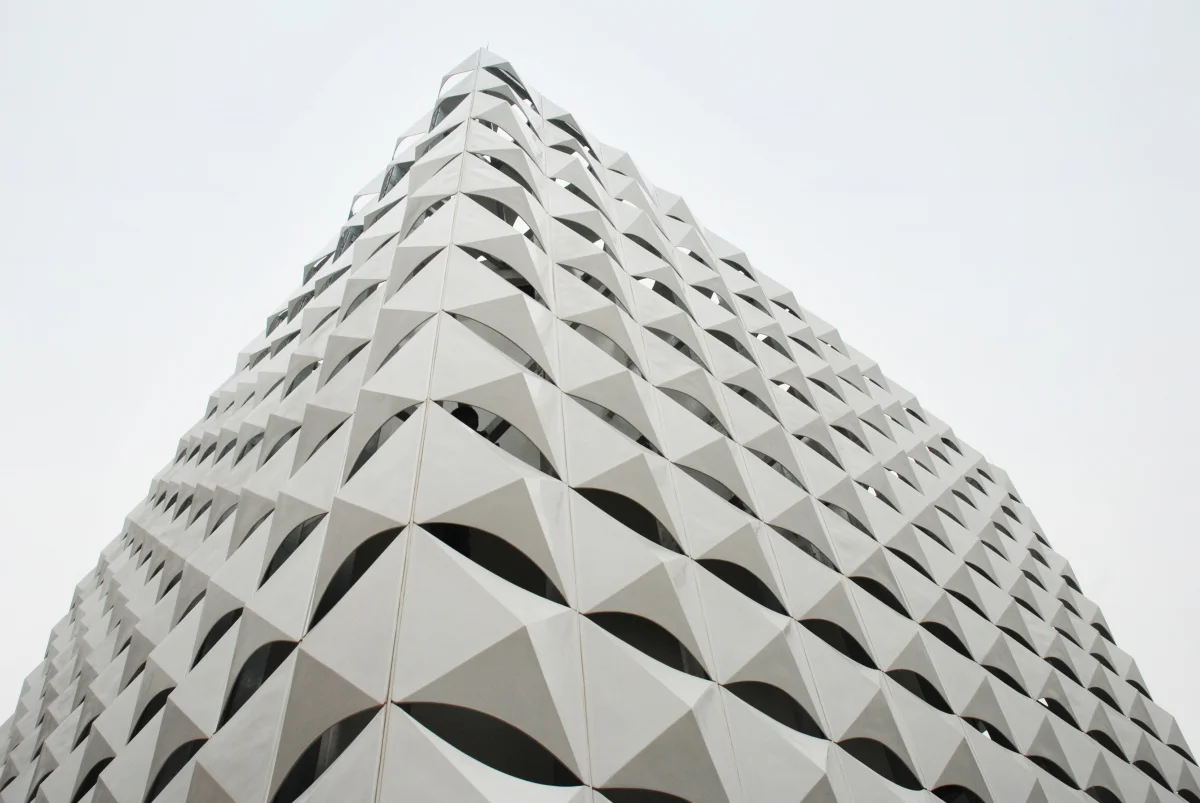

建筑由于体量限定为方盒子，因此设计的重点着眼于表皮的营造。我们根据佛山本地的一些艺术作品，抽取一些具有特色的艺术符号，采用参数化工具，进行新的演绎。演绎出来的各种不同图案，考虑日照，空间使用等要求，进行相应的选择，最终形成富有变化的表皮，并且这些表皮还与室内空间的布置以及建筑性能相关。十个不同建筑，采用十组不同的表皮，这些表皮如同建筑的表情,增加艺术村的艺术特色。在生成表皮的过程中，非常注意表皮本身形成的体积感，通过表皮的凹凸，完成了从二维表皮向三维体量的转化。
确定建筑表皮后，表皮的建造就成为一个考虑的重点，首先把表皮进行划分，表皮的结构形式采用简单的纵横龙骨结构，表皮的组件大小根据龙骨的尺寸确定。表皮的材料根据具体位置的不同，或采用金属，或采用玻璃钢。划分后的表皮再进行简化，以最为复杂的表皮为例，最终简化为5种标准模块。确定标准模块后，加工工厂根据材料的加工工艺进行相应制造。采用玻璃钢的表皮模块，工厂需要制作相应木模，木模制作完后，再根据木模翻模。广场制作完后，进行标号，运到施工现场安装即可。
Because of the restricted cubic volume, the design strategy is rather focused on the exterior/skin formation. We intend to make designs respectful to local art characteristics and using parametric design devices. Our skin designs with considerations of sunlight, space usage,etc. are supposed to be diverse and responding to the interior form and functions of each building. Each building will have a different exterior expression just like a building’s facial emotion, adding to the overall artistic effect of the village. More importantly, the volumetric texture of the skins should be carefully processed to achieve two to three dimensional translation.
After making a decision on the skin pattern, the skin construction become a major focal point. First we are expected to do the division on the skin, and apply the vertical and horizontal keel structure to create its basic structural form, then decide on the size of its components depending on the keel dimensions. The skin materials could be metal or fiber reinforced plastics, varied according to specific locations on the surface. The division planning on the skin should then be simplified to basic modules. For example, the most complicated skin is to be simplified to only five standard modules. Manufacturers can then construct the skins using the standard modules and different material manufacturing techniques. For skin modules made out of aluminum, factories will have to crave the panels and fold them afterwards. Finally, the skins will be installed after they are produced and labeled.
